VDA 19(中文)汽车部件清洁度测试

VDA(德国的汽车工业联合会)简介

  VDA6.1认证,德国的汽车工业联合会(VDA:VERBAND DER AUTOBOMIL INDUSTRIE)为整合德国汽车工业的各项标准,于1970年提出的要求。在欧洲,德国的汽车工业联合会(VDA)在与法国及意大利的汽车工业联合会(EAQF、AVSQ)协调后,制订了针对物料产品供应商的VDA6.1“质量体系认证”要求。

  德国的汽车工业联合会(VDA)要求其成员必 须的遵循VDA相关的质量管理体系实施和维护的相关的标准。其中VDA 19是关于金属零部件技术清洁度检测的部分。

VDA1.9适用范围和有 效性

  VDA 19描述了用于零部件颗粒物污染(清洁度检测)的相关要求以及相应的检测方法。并在此基础上对于零件的清洁度做出一个合理的评估。

  主要用于:

  零部件初步检验和评估;

  销售或采购零部件的清洁度相关检测;

  质量控制或与清洁相关的生产过程检测(如表面处理和装配过程的清洁度检测)。

  该指南提高了测试结果的信息质量和可比性,它还规定了在汽车行业质量链中清洁规格和清洁度测试结果的标准化表达。

  相关应用信息:

  根据本指南进行技术清洁检查,本标准引用了下列文件为目录、规格和报告:

  “根据VDA 19.1清洁度检验标准”,在供应链关系内与客户没有没有其他协议的情况下的标准分析方法。

  “根据VDA 19.1的要求进行外部清洁度测试”,在供求关系内更详细的分析方法已经被定义并且已经记录在案的情况下,相关的清洁度检测标准以及相关的分析方法。

  “根据VDA 19.1优化检测时间和方法”在供求关系内清楚的定义检测方法优化、应用领域、参数。

由于篇幅所限,如需至近VDA 19-2015完整介绍,请致电上海百贺仪器400-000-6011。

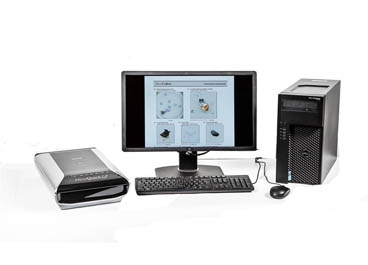

     VDA 19相关检测仪器

附件:VDA1.9英文版本简介



  1 SCOPE OF APPLICATION AND VALIDITY

  1.1 Introduction

  The guideline describes requirements for applying and documenting methods for determining particulate contamination on functionally-relevant components (cleanliness inspection).

  A cleanliness inspection forms the basis of an assessment of technical cleanliness, which is performed, for example, under the following circumstances:

  Initial inspection and evaluation

  Inspection of incoming and outgoing components

  Quality control or monitoring of manufacturing processes relevant to cleanliness (e.g. cleaning, surface treatment and assembly processes).

  The guideline enhances the informative quality and comparability of test results; it also regulates the standardized expression of cleanliness specifications and cleanliness test results in the quality chain of the automotive industry.

  Information concerning references:

  If an inspection of technical cleanliness has been carried out in accordance with this guideline, the following reference is made in such documents as catalogues, specifications and reports:

  “Standard cleanliness inspection according to VDA 19.1” in cases where standard analysis methods and parameters are used and no other agreements regarding methods and parameters have been made within the scope of the customer-supplier relationship.

  “Extended cleanliness inspection according to VDA 19.1” in cases where more detailed analysis methods have been defined, implemented, parameterized and documented within the scope of the customer-supplier relationship, or in the event that modified or extended standard analysis methods are implemented, which have also been agreed upon and documented.

  “Shortened cleanliness inspection according to VDA 19.1” in cases where shortened analysis methods are implemented and whose application, parameterization and documentation are defined within the scope the customer-supplier relationship.
